Products
NI Hard Liners
Wear Resistant Casting
Loading...
Specification

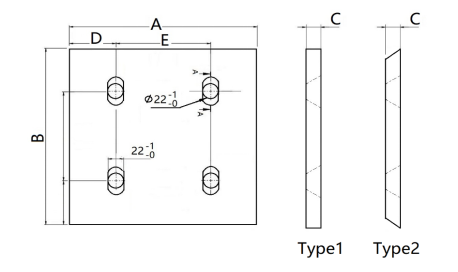

| Size chart of standard liner | |||||||
| Part No. | Type | A | B | C | D | E | Weight (kgs) |
| L1 | 1 & 2 | 300 | 300 | 20 | 75 | 150 | 13.60 |
| L2 | 1 & 2 | 300 | 200 | 20 | 75 | 150 | 9.20 |
| L3 | 1 & 2 | 300 | 150 | 20 | 75 | 150 | 6.80 |
| L4 | 1 & 2 | 300 | 120 | 20 | 75 | 150 | 5.40 |
| L5 | 1 & 2 | 300 | 100 | 20 | 75 | 150 | 4.50 |
| L6 | 1 & 2 | 200 | 100 | 20 | 62.5 | 75.0 | 3.10 |
| N1 | 1 & 2 | 296 | 146 | 32 | 73 | 10.60 | |
| N2 | 1 & 2 | 296 | 196 | 32 | 98 | 14.30 | |
| N3 | 1 & 2 | 296 | 296 | 32 | 73 | 150.0 | 21.70 |
| ML1 | 1 & 2 | 300 | 148 | 32 | 150 | 75.0 | 10.90 |
| ML3 | 1 & 2 | 300 | 300 | 32 | 150 | 75.0 | 22.30 |
Overview
The product is easy to install, easy to use, widely used, and can be customized according to customer needs.
